- ASUS
Цена
€236 37 / 462 30 лв
с ДДС
* ВЪНШЕН ДОСТАВЧИК - (1 до 3 дни)
* - Стоката е в склад на официалния вносител на марката за България. Времето за доставка е обикновено от 1 до 3 работни дни. Възможно е към момента на завършване на поръчката, продукта да е вече изчерпан. В случай на изчерпана наличност ще се свържем с Вас
Информираме Ви, че въпреки нашите усилия не можем да гарантираме, че публикуваната информация и снимки не съдържат неточности или грешки, които не могат да бъдат правно основание за претенции.
Vendor_url
https://www.asus.com/motherboards-components/motherboards/tuf-gaming/tuf-gaming-b650e-plus-wifi/
Graphics
1 x DisplayPort
1 x HDMI™ port
CPU's supported
AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors
Chipset
AMD B650 Chipset
Expansion slots
AMD Ryzen™ 9000 & 7000 Series Desktop Processors
1 x PCIe 5.0 x16 slot (supports x16 mode)
AMD Ryzen™ 8000 Series Desktop Processors
1 x PCIe 4.0 x16 slot (supports x8/x4 mode)**
AMD B650 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)***
2 x PCIe 4.0 x1 slots
Storage
Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports
AMD Ryzen™ 9000 & 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
AMD Ryzen™ 8000 Series Desktop Processors
M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4/x2 mode)
AMD B650 Chipset
M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
Memory type
4 x DIMM slots, max. 256GB, DDR5
Supports up to 8000+MT/s (OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors, ECC and Non-ECC Un-buffered DIMM
Dual channel memory architecture
Supports AMD Extended Profiles for Overclocking (EXPO™)
ASUS Enhanced Memory Profile (AEMP)

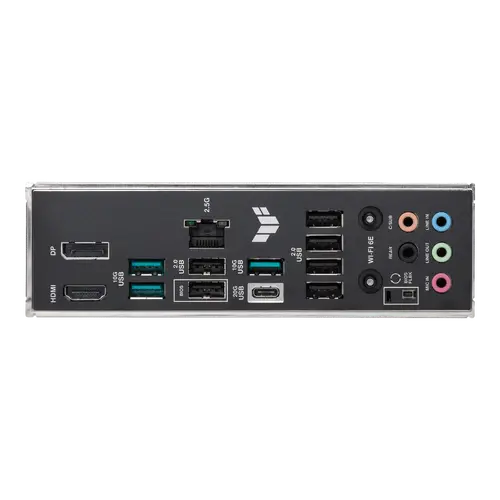

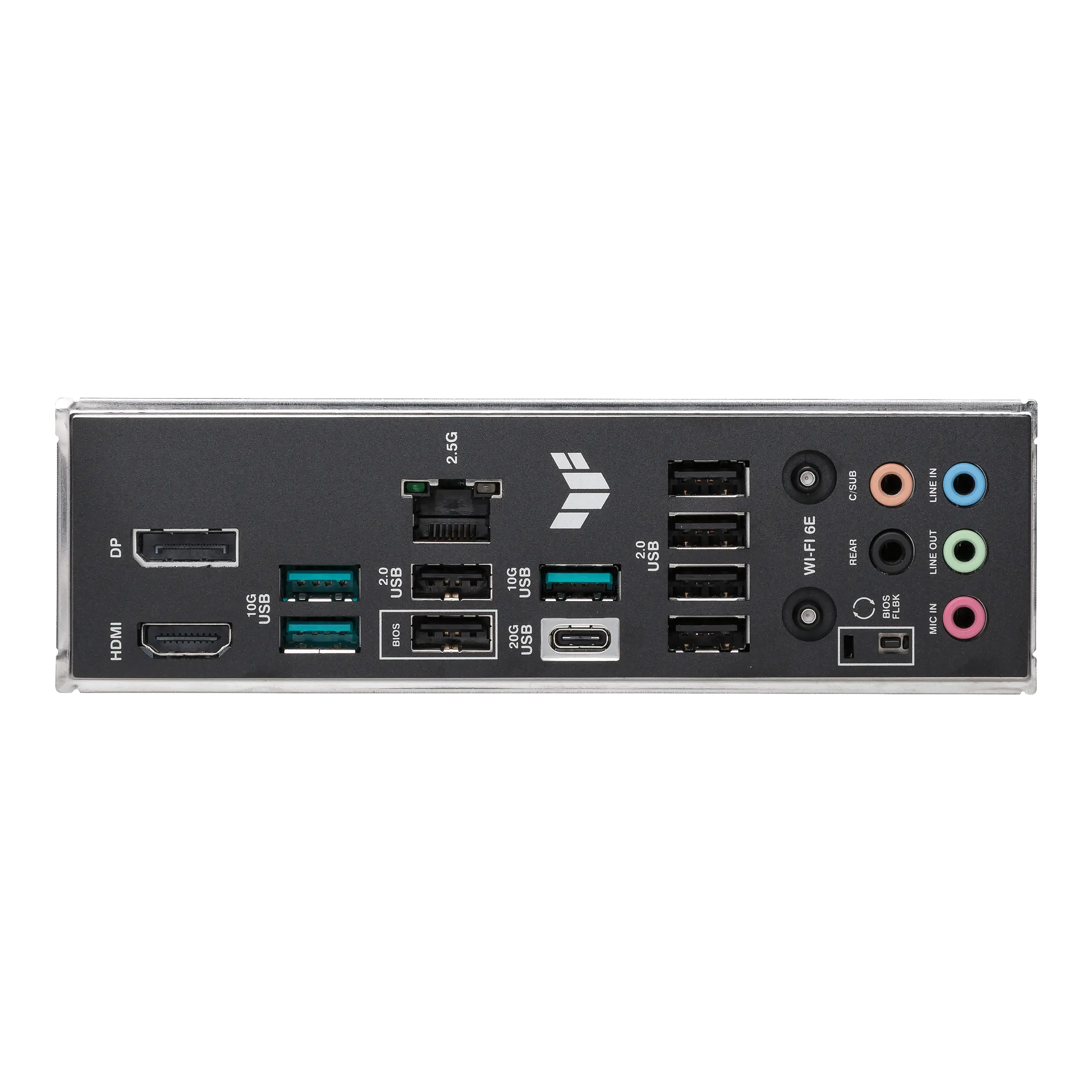

Rear panel I/O
1 x USB 20Gbps port (1 x USB Type-C®)
3 x USB 10Gbps ports (3 x Type-A)
6 x USB 2.0 ports (6 x Type-A)
1 x DisplayPort
1 x HDMI™ port
1 x Wi-Fi module
1 x Realtek 2.5Gb Ethernet port
5 x Audio jacks
1 x BIOS FlashBack™ button
USB
Rear USB (Total 10 ports)
1 x USB 20Gbps port (1 x USB Type-C®)
3 x USB 10Gbps ports (3 x Type-A)
6 x USB 2.0 ports (6 x Type-A)
Front USB (Total 7 ports)
1 x USB 10Gbps connector (supports USB Type-C®)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports2 x USB 2.0 headers support 4 additional USB 2.0 ports
* USB Type-C® power delivery output: max. 5V/3A.
Connectors
Fan and Cooling Related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan headers
Power Related
1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connectors
Storage Related
3 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 10Gbps connector (supports USB Type-C® )
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x Clear CMOS header
1 x Chassis Intrusion header
1 x COM Port header
1 x Front Panel Audio header (F_AUDIO)
1 x 10-1 pin Front System Panel header
1 x Thunderbolt™ (USB4®) header
Audio
Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC
- Impedance sense for front and rear headphone outputs
- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
- Supports up to 32-Bit/192 kHz playback*
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
- Audio cover
- Unique de-pop circuit
* Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.
Lan
1 x Realtek 2.5Gb Ethernet
TUF LANGuard
Wireless
Wi-Fi 6E
2x2 Wi-Fi 6E (802.11ax)
Supports 2.4/5/6GHz frequency band
Bluetooth® v5.3
Bluetooth
5.3
BIOS
256 Mb Flash ROM, UEFI AMI BIOS
Form factor
ATX Form Factor
30.5 cm x 24.4 cm
OS
Windows 11, Windows 10 64-bit
Warranty
36 Months
Данни, подадени от официалния вносител за България.
| Атрибут | Стойност |
|---|---|
| Vendor_url | https://www.asus.com/motherboards-components/motherboards/tuf-gaming/tuf-gaming-b650e-plus-wifi/ |
| Chipset | AMD B650 Chipset |
| OS | Windows 11, Windows 10 64-bit |
| Warranty | 36 Months |
| CPU's supported | AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors |
| Memory type | Dual channel memory architecture |
| Memory type | Supports AMD Extended Profiles for Overclocking (EXPO™) |
| Memory type | 4 x DIMM slots, max. 256GB, DDR5 |
| Memory type | Supports up to 8000+MT/s (OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors, ECC and Non-ECC Un-buffered DIMM |
| Memory type | ASUS Enhanced Memory Profile (AEMP) |
| Form Factor | ATX Form Factor |
| Form Factor | 30.5 cm x 24.4 cm |
| Audio | - Dedicated audio PCB layers |
| Audio | - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking |
| Audio | Audio Features |
| Audio | - Audio Shielding |
| Audio | - Premium audio capacitors |
| Audio | - Audio cover |
| Audio | - Unique de-pop circuit |
| Audio | - Impedance sense for front and rear headphone outputs |
| Audio | Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC |
| Audio | - Internal audio Amplifier to enhance the highest quality sound for headphone and speakers |
| Audio | - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) |
| Audio | - Supports up to 32-Bit/192 kHz playback* |
| Audio | * Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio. |
| Rear panel I/O | 1 x DisplayPort |
| Rear panel I/O | 1 x HDMI™ port |
| Rear panel I/O | 1 x BIOS FlashBack™ button |
| Rear panel I/O | 1 x Realtek 2.5Gb Ethernet port |
| Rear panel I/O | 5 x Audio jacks |
| Rear panel I/O | 1 x Wi-Fi Module |
| Rear panel I/O | 1 x USB 20Gbps port (1 x USB Type-C®) |
| Rear panel I/O | 3 x USB 10Gbps ports (3 x Type-A) |
| Rear panel I/O | 6 x USB 2.0 ports (6 x Type-A) |
| LAN | 1 x Realtek 2.5Gb Ethernet |
| LAN | TUF LANGuard |
| Expansion Slots | AMD Ryzen™ 9000 & 7000 Series Desktop Processors |
| Expansion Slots | AMD Ryzen™ 8000 Series Desktop Processors |
| Expansion Slots | 2 x PCIe 4.0 x1 slots |
| Expansion Slots | AMD B650 Chipset |
| Expansion Slots | 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)** |
| Expansion Slots | 1 x PCIe 5.0 x16 slot (supports x16 mode) |
| Expansion Slots | 1 x PCIe 4.0 x16 slot (supports x4 mode)*** |
| Wireless | Wi-Fi 6E |
| Wireless | 2x2 Wi-Fi 6E (802.11ax) |
| Wireless | Supports 2.4/5/6GHz frequency band |
| Wireless | Bluetooth® v5.3 |
| Graphics | 1 x HDMI™ port |
| Graphics | 1 x DisplayPort |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Storage | 4 x SATA 6Gb/s ports |
| Storage | AMD Ryzen™ 9000 & 7000 Series Desktop Processors |
| Storage | AMD Ryzen™ 8000 Series Desktop Processors |
| Storage | M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) |
| Storage | M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4/x2 mode) |
| Storage | AMD B650 Chipset |
| Storage | Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports |
| Storage | M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode) |
| Storage | M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) |
| Storage | M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) |
| Bluetooth | 5.3 |
| Connectors | 1 x chassis intrusion header |
| Connectors | 1 x COM port header |
| Connectors | Fan and Cooling related |
| Connectors | 1 x 4-pin CPU Fan header |
| Connectors | Power related |
| Connectors | 1 x 24-pin Main Power connector |
| Connectors | Storage related |
| Connectors | 4 x SATA 6Gb/s ports |
| Connectors | USB |
| Connectors | Miscellaneous |
| Connectors | 1 x Clear CMOS header |
| Connectors | 2 x USB 2.0 headers support 4 additional USB 2.0 ports |
| Connectors | 3 x Addressable Gen 2 headers |
| Connectors | 1 x 4-pin CPU OPT Fan header |
| Connectors | 1 x 4-pin AIO Pump header |
| Connectors | 1 x Thunderbolt™ (USB4®) header |
| Connectors | 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports |
| Connectors | 3 x M.2 slots (Key M) |
| Connectors | 4 x 4-pin Chassis Fan headers |
| Connectors | 2 x 8-pin +12V CPU Power connectors |
| Connectors | 1 x USB 10Gbps connector (supports USB Type-C® ) |
| Connectors | 1 x Front Panel Audio header (F_AUDIO) |
| Connectors | 1 x 10-1 pin Front System Panel header |
| USB | Front USB (Total 7 ports) |
| USB | Rear USB (Total 10 ports) |
| USB | 1 x USB 20Gbps port (1 x USB Type-C®) |
| USB | 3 x USB 10Gbps ports (3 x Type-A) |
| USB | 6 x USB 2.0 ports (6 x Type-A) |
| USB | 1 x USB 10Gbps connector (supports USB Type-C®) |
| USB | 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports2 x USB 2.0 headers support 4 additional USB 2.0 ports |
| USB | * USB Type-C® power delivery output: max. 5V/3A. |
| Тегло | 0.00кг |
Данни, автоматично извлечени от интернет. Точността не е гарантирана. За подробна информация, моля, свържете се с нас или посетете страницата на производителя.
Внимание! Тъй като не всички вносители подават коректно данните за продуктите, информацията по-долу е извлечена с помощта на изкуствен интелект от различни източници в интернет и не е 100% коректна. Ако се съмнявате в нещо, моля свържете се с нас, за да проверим точно желаните от вас характеристики.
ASUS TUF GAMING B650E-PLUS WIFI – Гейминг дънна платка от следващо поколение
Владетейте игрите и продуктивността с ASUS TUF GAMING B650E-PLUS WIFI, проектирана за максимална производителност и издръжливост. Съвместима с процесори AMD Ryzen™ 7000, тази дънна платка предлага светкавична скорост, стабилно захранване и бъдещо-устойчиви връзки.
Основни предимства:
- Ненадмината производителност: Поддръжка на PCIe® 5.0 за супербърз трансфер на данни за GPU и NVMe SSD.
- Военна издръжливост: Укрепени компоненти и TUF Protection (ESD защита, устойчивост на високи температури).
- Безпроблемна свързаност: WiFi 6, 2.5G LAN и USB4® за онлайн игри без закъснения и бързи файлови трансфери.
- Оптимизирано охлаждане: Разширени радиатори и Fan Xpert 4 за ефективно управление на топлината.
- AI оптимизация: ASUS AI Overclocking и AI Noise Cancelation за автоматичен тюнинг.
Технически спецификации:
- Сокет: AM5 (AMD Ryzen™ 7000)
- Чипсет: AMD B650E
- Памет: DDR5 до 6400MHz (OC), 4x DIMM
- Разширителни слотове: PCIe 5.0 x16, PCIe 4.0 x16
- Съхранение: 4x SATA, 3x M.2 (PCIe 5.0 x4)
- Мрежа: WiFi 6, 2.5G Ethernet
Надградете вашата система с ASUS TUF GAMING B650E-PLUS WIFI—мощност и надеждност в едно!
